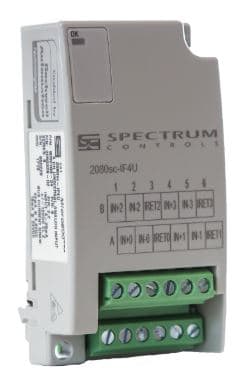

Spectrum Controls - 4-CHANNEL MODULE / SPECTRUM CONTROLS - 2080SC-IF4U

4 Channel Universal Analogue Input Module.

• Four channels of voltage, current, or thermocouple, or two plus one or two RTD/resistance (4-wire)

• inputs or two to four RTD/resistance channels.

• Use any combination of input types at one time.

• Individually programmable for each channel.

• Easy to configure using RSLogix programming software.

• Channel-selectable filtering for fastest analog update time and noise rejection.

• Cold junction compensation included for thermocouples.

• Accuracy comparable with dedicated analog modules.

• 3-wire support for RTDs.
