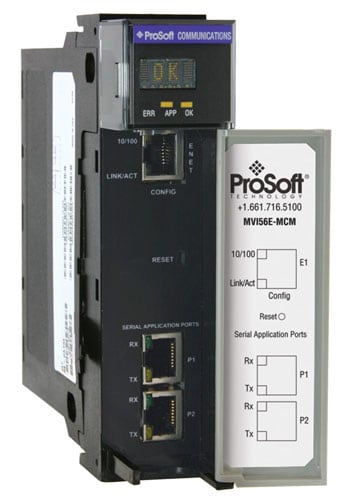

Prosoft - Modbus enhanced comm. module conf.coat - MVI56E-MCM-CC
€ 3.805,00
door St.
€ 3.805,00
1
Levering
Aantal beschikbare items voor levering:0
Belangrijke informatie
Voedingsspanning bij DC - 24...24 V
Ondersteunt protocol voor Modbus - ja
Spanningstype voedingsspanning - DC
Draagrailmontage mogelijk - ja
Wand-/directmontage mogelijk - nee
Verpakking
1 St.
EAN
Ref Routeco
MVI56E-MCM-CC
Ref leverancier
MVI56E-MCM-CC
Ref commercieel
MVI56E-MCM-CC
Voedingsspanning bij DC:
24...24 V
Ondersteunt protocol voor Modbus:
ja
Spanningstype voedingsspanning:
DC
Draagrailmontage mogelijk:
ja
Wand-/directmontage mogelijk:
nee
Frontinbouw mogelijk:
ja
Rackmontage mogelijk:
nee
Modbus Master/Slave Enhanced Network Interface Module for ControlLogix. Conformal Coated.
- Backward Compatibility: All MVI56E products are backward-compatible with earlier MVI56 modules allowing direct replacement without the need to change existing controller programs
- 10,000 Word Database: Allows you to gather more data from your devices, which improves operational performance
- Enjoy Enhanced features and flexibility without incurring expensive reprogramming costs
- Add-On Instruction: Module configuration stored within the RSLogix™ 5000 project (ACD file)
- No additional programming or configuration software is required
- Add-On Instruction for RSLogix 5000 version 16 or higher cuts development time and costs
- CIPconnect® Enabled: Facilitates remote user access across the ControlLogix backplane through Rockwell Automation’s 1756-ENBT module
- Configure, diagnose, and analyze process data and communications status
- Bridge through multiple ENBT/CNBT links to connect to MVI56E-MCMs installed in remote chassis for configuration and diagnostics
- Add-On Profile: Simplifies adding the module in an RSLogix 5000 project
