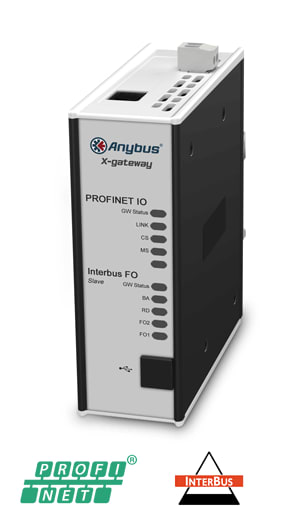

HMS - Profinet IO Slave CANopen Slave - AB7658

Anybus X-gateway – CANopen Slave - PROFINET-IO Device

• Fast copying of cyclic I/O data between CANopen and PROFINET-IO networks (10-15 ms)

• Proven and tested with all PLC manufacturers

• Supports up to a maximum of 512 bytes of Input and Output data in each direction

• Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network

• Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server

• Optional control status information added to I/O data for diagnostic purposes

• Robust stand-alone housing for use in harsh industrial environments

• Global free technical support and consultancy

• CANopen Slave interface

• CANopen Slave settings can be made either via on-board switches, or by importing the provided .EDS file into engineering tool of the controlling PLC.

• Complete CANopen slave functionality according to CANopen Version 4.02

• Max 512 bytes of Input and 512 bytes of Output data (PDO + SDO)

• Customizable PDO mapping

• Up to 80 RPDO’s and 80 TPDO’s

• Transmission types: PDO Sync, Change-of-state, Event based and RTR

• Network store/restore functionality

• Heartbeat & Node Guarding support

• Supports CANopen baudrates 10 kbit/s – 1 Mbit/s

• CANopen configuration via .EDS file or via on-board rotary switches

• 1x D-sub 9-pin male CANopen connector

• PROFINET I/O Device/Slave interface

• PROFINET IO Device/Slave settings can be made by importing the provided .GSDML file into engineering tool of the controlling PLC.

• Complete PROFINET-IO Soft-Real-Time (RT) communication

• Max 512 bytes of Input and 512 bytes of Output data

• Up to 64 slots / 1 sub slot

• Cyclic data exchange (10 ms cycle time)

• Acyclic Data exchange (Record Data Requests)

• Baud rate 100 Mbit/s

• Integrated FTP server provides easy file management using standard FTP clients

• Web server with dynamic data capability and Server Side Include (SSI) capability

• Email client with dynamic data capability and Event-triggered email handling

• TCP/IP Configuration via DCP (Discovery and Configuration Protocol)

• PROFINET uplink configuration via web interface or .GSDML file

• 1x RJ45 network connector
