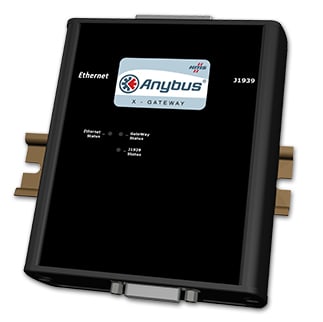

Anybus X-gateway – Ethernet Adapter/Server – J1939

• Monitor and control data on a J1939 heavy duty vehicle network from an Ethernet-based PLC system or device

• Support for EtherNet/IP or Modbus TCP protocols

• Typical applications: Electric Power Generation, Oil & Gas, Marine, Military, Heavy Duty Vehicles, Any Diesel Engine based system supporting J1939

• Max 500 bytes of I/O data in each direction

• Easy configuration via the included BWConfig Windows Software. No programming required

• 10/100 Mbit/s Ethernet adapter interface with IT functionality: HTTP server, FTP server, Telnet server and Email client

• Robust aluminum stand-alone housing

• Global free technical support and consultancy

• J1939 interface

• SAE J1939 network interface with a unique network address in accordance to the J1939-81 specification

• Max 496 bytes of I/O Input data and 492 bytes of I/O Output Data

• Up to 120 PGN's monitored by Input data points

• Up to 100 PGN's transmitted by Output data points

• Supports J1939 network baud rates of 250K and 500K

• Transmission and reception of all types of fixed-length J1939 messages, including PDU1, PDU2, broadcast and destination specific

• Monitoring of DM1 (active diagnostics) and DM2 (previously active diagnostics) messages

• Complete network address management including address claim, protection, and yield on higher priority conflict

• Network address can be self-configurable over a range of addresses

• J1939 Transport Protocol for transmission and reception of large messages (9 - 1785 bytes). Both connection based (RTS/CTS) and broadcast (BAM) are supported

• Configurable CAN bus-off reset option will reset the network interface and attempt to return to online when a CAN bus-off condition is detected

• 1x 5-pole 5.08 mm Phoenix pluggable screw connector for J1939

• Ethernet interface

• Ethernet settings can be made either via the included BWConfig Windows Software or for EtherNet/IP, by importing the provided .EDS file into engineering tool of the controlling PLC.

• Supports EtherNet/IP or Modbus TCP protocols

• Supports the EtherNet/IP protocol, Adapter Class with I/O Server, and Message Server

• Supports the Modbus/TCP protocol with up to 8 simultaneous connections and conforms to the Modbus/TCP specification 1.0

• 10/100Mbit operation (auto detect)

• IT Functionality: HTTP server, FTP server, Email client, and a Telnet server.

• IP address settings via DHCP/Bootp, web page, or the Anybus X-gateway Configuration Tool.

• 1x RJ-45 Ethernet port
