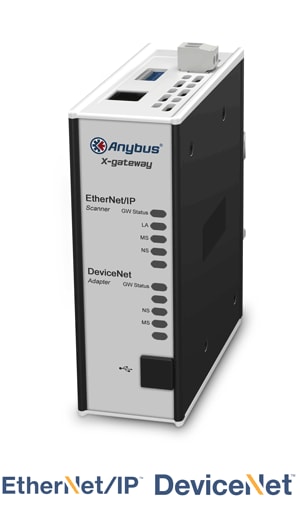

HMS - EtherNet/IP Master-DeviceNet Slave - AB7672

Anybus X-gateway – EtherNet/IP Scanner - DeviceNet Adapter

• Fast copying of cyclic I/O data between the two networks (10-15 ms)

• Proven and tested with all PLC manufacturers

• Powerful Scanner interface eliminates the need for a PLC controller on the EtherNet/IP network

• Supports up to a maximum of 512 bytes of Input and Output data in each direction

• Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network

• Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server

• Optional control status information added to I/O data for diagnostic purposes

• Robust stand-alone housing for use in harsh industrial environments

• Global free technical support and consultancy

• EtherNet/IP Scanner/Master interface

• An Anybus X-gateway with an integrated EtherNet/IP Scanner interface can be used when there is no existing EtherNet/IP controlling PLC. The X-gateway will perform EtherNet/IP Scanner functions.

• EtherNet/IP CONFORMANCE TESTED™ by ODVA

• Connects up 64 EtherNet/IP Adapter/Slaves

• 10/100Mbit operation in full or half-duplex

• Max. 509 bytes Input and 505 bytes Output data

• Optional Live List of the active status of the connected adapters

• Integrated FTP server provides easy file management using standard FTP clients.

• Web server with dynamic data capability and Server Side Include (SSI) capability

• Email client with dynamic data capability and Event-triggered email handling

• Support for CIP Objects

• DNS Capability

• TCP/IP settings via on-board DIP switches, DHCP/ARP/Anybus IPconfig (HICP)

• EtherNet/IP Scanner/Adapter network configuration via in-built web interface or RSLogix/Studio5000 software

• 1x RJ-45 Ethernet port

• DeviceNet Adapter features

• DeviceNet Adapter settings can be made either via on-board switches, or by importing the provided .EDS file into engineering tool of the controlling PLC.

• DeviceNet CONFORMANCE TESTED™ by ODVA

• DeviceNetNet Specification version: Communications Adapter profile 12

• Max. 512 bytes of Input and 512 bytes of Output data

• DeviceNet baudrate 125, 250, 500 kbit/s

• Supports I/O Slave messaging: Bit strobe, Polling, Cyclic, COS and Explicit Messaging

• MacID node address setting via DIP switch

• DeviceNet network configuration via .EDS file

• 1x 5-pin, 5.08 Phoenix plug connector
