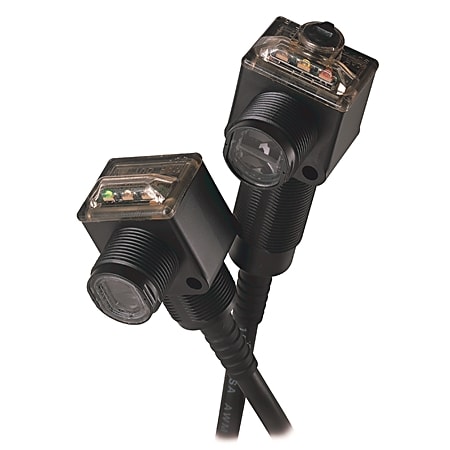

Allen-Bradley - RightSight - 42EF-D1RFAK-G4

PHOTOSWITCH®, RightSight™ photoelectric sensor with diffuse, Infrared LED, Light operated, Source (PNP) P-MOSFET output, Manual sensitivity adjustment, 4-pin AC M12 pigtail connection. The sensors can be through-hole mounted against a surface or can be installed using the threaded 18 mm base or nose mounting options. It is designed to withstand the rigors of food processing and material handling environments.

• Our Bulletin 42EF RightSight™ General Purpose Sensors are designed for light- to medium-level industrial use. These sensors take many of the features of larger solutions and puts them in a smaller, more adaptable package to deliver excellent detection capabilities where size and shape matter.

• Incorporates embedded IO-Link Technlology in select sensors to help minimize downtime and increase productivity

• Patented housing design with 1200 psi washdown ratings

• Available in 12...24V DC and universal AC/DC supply versions

• 360° visible indicators

• Universal 18 mm mounting at base and nose, and through-hole mounting

• Short circuit protection across entire voltage range

• Variety of sensing modes and output types
