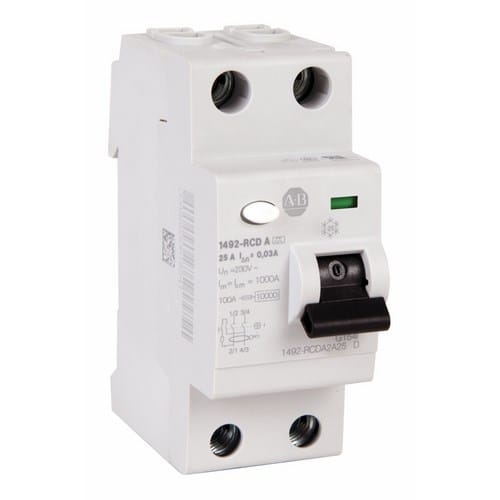

Allen-Bradley - RESIDUAL CURRENT DEVICE 25 A - 1492-RCDA2B25
€ 183,00
door St.
€ 183,00
1
Levering
Aantal beschikbare items voor levering:0
Belangrijke informatie
Aantal polen - 2
Nom. (meet)stroom - 25 A
Nom. foutstroom - 100 A
Nom. (meet)spanning - 230 V
Montagewijze - DIN-rail
Verpakking
1 St.
EAN
00885630618180
Ref Routeco
1492-RCDA2B25
Ref leverancier
1492-RCDA2B25
Ref commercieel
1492-RCDA2B25
Aantal polen:
2
Nom. (meet)stroom:
25 A
Nom. foutstroom:
100 A
Nom. (meet)spanning:
230 V
Montagewijze:
DIN-rail
Kortsluitvastheid (Icw):
10 kA
Beschermingsgraad (IP):
IP2X
Inbouwdiepte:
67 mm
Residual Circuit Breaker. Standard Configuration, 2-pole, 100mA Sensitivity, 25 A,
- Provides protection against current leakage to ground (earth) caused by an insulation
- loss between a live conductor and an exposed conductive part (such as an abraded wire, or a grounded person touching the live conductor)
- Suitable for protection against AC and pulsating DC (rectified AC) earth leakage current
- 30 mA sensitivity devices for personnel protection (consult local requirements)
- 100, 300 and 500 mA sensitivity devices for equipment protection
- Dual terminals allow a more secure connection of two wires, or both a wire and bus bar
- Reversible line and load connections
