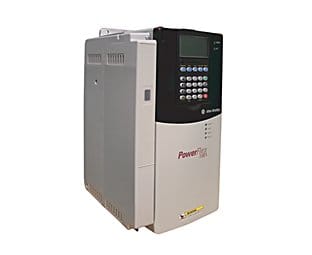

Allen-Bradley - POWERFLEX 700S AC DRIVE 20D - 20DE022A0EYNANANE

PowerFlex700S AC Drive, 600 VAC, 3 PH, 22 Amps, 20HP Normal Duty, 15HP Heavy Duty, IP20 / Type 1, with conformal coating, No HIM (Blank Plate), Brake IGBT Installed, Without Drive Mounted Brake Resistor, Second Environment Filter per CE EMC directive (89/336/EEC), No Communication Module, Phase II control, Expanded cassette, Standard (Incremental Encoder), Phase II, No DriveLogix, no embedded comm

• Power Ratings ◦200…240V: 0.75…66 kW / 1…100 Hp / 4.2…260 A

• ◦380…480V: 0.75…800 kW / 1…1250 Hp / 2.1…1450 A

• ◦500…600V: 1…1600 Hp / 1.7…1500 A

• ◦690V: 50…1500 kW / 52…1500 A

• IP20 NEMA/UL Type 1 and IP21 NEMA/UL Type 1

• V/Hz control, Vector Control with FORCE™ Technology, and Permanent Magnet Motor Control

• Zero Stacking™ Drives or side-by-side mounting conserves panel space and reduces installation costs

• Pull-apart control terminal blocks allow for easy wiring and quick disconnect

• Optimized global voltage settings allow quick setup anywhere in the world

• Common bus capability

• SynchLink™ fiber optic link for a high level of drive coordination and data transfer

• AC or DC common bus configurations for stand-alone or multiple drive solutions

• User function library provides logic functions without a PLC

• Optional DriveLogix™ embedded control for application programmability and control of auxiliary functions

• Configuration and programming via optional integral LCD keypad, remote keypad, or software

• Premier Integration with PowerFlex® AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time

• Available Embedded Safety Options

• Safe Torque-Off option is certified at PLd/SIL2 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system. All safety options are available as a kit for user installation
