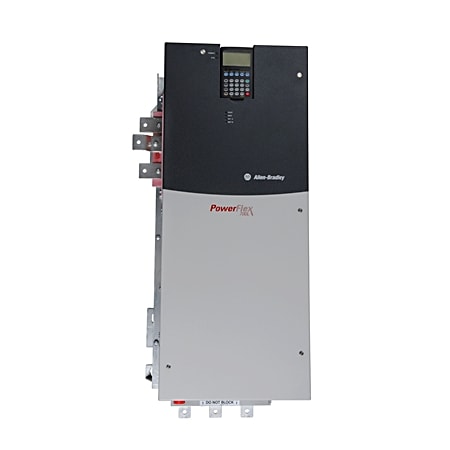

Allen-Bradley - POWERFLEX 700L AC DRIVE 20L - 20LC1K2A0ENNAN10WA

PowerFlex700L AC Drive, 400 VAC, 3 PH, 1250 Amps, 800HP Normal Duty, IP20 / Type 1, No HIM (Blank Plate), No Brake IGBT, Without Drive Mounted Brake Resistor, No Communication Module, 700 Vector 24V I/O, None, None

• Power Ratings ◦380…480V: 200…860 kW / 268…1150 Hp / 360…1250 A

• ◦500…600V: 345…650 kW / 465…870 Hp / 425…800 A

• ◦690V: 355…657 kW / 475…881 Hp / 380…705 A

• IP00 NEMA/UL Type Open (Frame 2), or IP20, NEMA Type 1 (Frames 3A, 3B) with Rittal enclosure that includes the input circuit breaker

• Available with the PowerFlex® 700 or PowerFlex 700S control

• Common Industrial Protocol (CIP™) communications including DeviceNet™, ControlNet™, and EtherNet/IP™

• Regenerative braking for precise, high-response speed and position control, continuous holdback, rapid deceleration and stopping of high inertia loads

• Regenerative braking puts energy back into the system to be used by other equipment

• Patented liquid-cooled heatsink design

• Low AC line harmonics with active converter to meet IEEE-519 and CE regulations

• Integrated active converter and line-side filter allow input voltage boost while maintaining consistent system performance

• Optional DriveLogix™ embedded control for application programmability and control of auxiliary functions

• Configuration and programming via optional integral LCD keypad, remote keypad, or software

• Premier Integration with PowerFlex AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time

• Available Safety Options

• Safe Torque-Off option (with 700S control) is certified at PLd/SIL2 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system. All safety options are available as a kit for user installation
