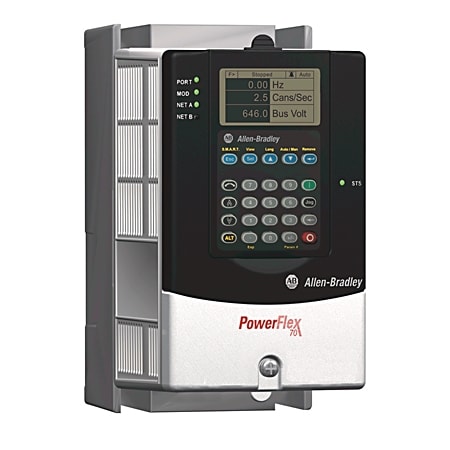

Allen-Bradley - PowerFlex 70 9.6 A at 3 Hp 20A AC drive - 20AB9P6A0AYNANC0
door St.
€ 2.087,66
Levering
Belangrijke informatie
Netspanning - 200...240 V
Max. uitgangsfrequentie - 500 Hz
Nom. uitgangsstroom I2N - 9.6 A
Max. afgegeven vermogen bij kwadratische belasting bij meetuitgangsspanning - 2.2 kW
Beschermingsgraad (IP) - IP66
Verpakking
1 St.
EAN
00820919248313
Ref Routeco
20AB9P6A0AYNANC0
Ref leverancier
20AB9P6A0AYNANC0
Ref commercieel
20AB9P6A0AYNANC0
Netspanning:
200...240 V
Max. uitgangsfrequentie:
500 Hz
Nom. uitgangsstroom I2N:
9.6 A
Max. afgegeven vermogen bij kwadratische belasting bij meetuitgangsspanning:
2.2 kW
Beschermingsgraad (IP):
IP66
Netfrequentie:
50/60 Hz
Aantal fasen ingang:
3
Aantal fasen uitgang:
3
Max. afgegeven vermogen bij lineaire belasting bij meetuitgangsspanning:
1.5 kW
Aantal analoge uitgangen:
1
Aantal analoge ingangen:
2
Aantal digitale uitgangen:
0
Aantal digitale ingangen:
6
Inzet in woon- en kantorenomgeving toegestaan:
ja
Geïntegreerde remchopper:
nee
Hoogte:
234.6 mm
Breedte:
171.7 mm
Diepte:
179.8 mm
PowerFlex70 AC Drive, 240 (208) VAC, 3 PH, 9.6 Amps, 3 HP Normal Duty, 2 HP Heavy Duty,Panel Mount - IP20 / NEMA Type 1, with conformal coating, No HIM (Blank Plate), Brake IGBT Installed, Without Drive Mounted Brake Resistor, Second Environment Filter per CE EMC directive (89/336/EEC), No Communication Module, Enhanced Control , No Feedback
- PowerFlex 70 AC Drives are compact packages of power, control, and operator interface designed to meet demands for space, simplicity, and reliability.
- These drives provide a broad spectrum of features that help you to easily integrate them into your architecture and configure them for most application needs.
- IP20 NEMA/UL Type 1, Flange Mount, IP54 NEMA/UL Type 12, IP66 NEMA/UL Type 4X/12 for indoor use.
- Zero Stacking Drives allowable with no reduction of ambient temperature rating (50 °C for IP20, NEMA/UL Type 1 and Flange Mount; 40 °C for IP66, NEMA/UL Type 4X/12)
- Wall or machine mount.
- V/Hz control, sensorless vector control, Vector Control with FORCE™ Technology.
- Common Industrial Protocol (CIP) including DeviceNet, ControlNet, and EtherNet/IP.
- Speed and torque control with and without encoder feedback.
- Advanced bus regulation and drive overload protection.
- Supports multiple languages.
- Configuration and programming via integral LCD keypad, remote keypad, or software.
