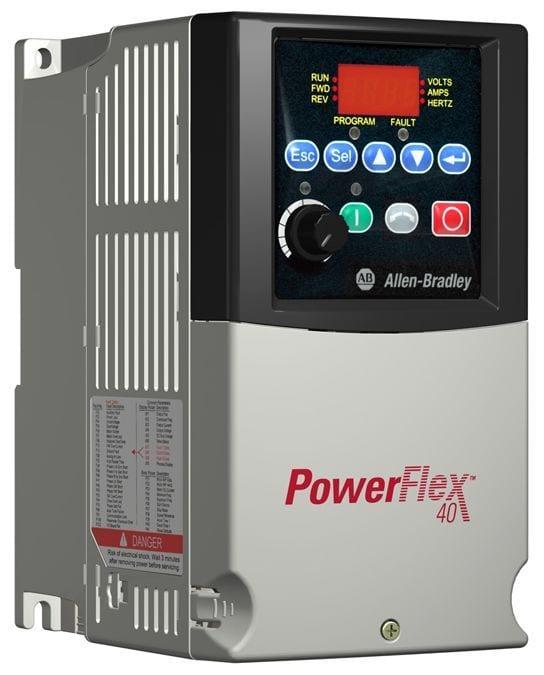

Allen-Bradley - PowerFlex 40 5.5 kW (7.5 Hp) AC Drive - 22B-D012H204
door St.
€ 1.381,18
Levering
Belangrijke informatie
Netspanning - 380...480 V
Max. uitgangsfrequentie - 400 Hz
Nom. uitgangsstroom I2N - 12 A
Max. afgegeven vermogen bij kwadratische belasting bij meetuitgangsspanning - 5.5 kW
Beschermingsgraad (IP) - IP20
Verpakking
1 St.
EAN
00820919142772
Ref Routeco
22B-D012H204
Ref leverancier
22B-D012H204
Ref commercieel
22B-D012H204
Netspanning:
380...480 V
Max. uitgangsfrequentie:
400 Hz
Nom. uitgangsstroom I2N:
12 A
Max. afgegeven vermogen bij kwadratische belasting bij meetuitgangsspanning:
5.5 kW
Beschermingsgraad (IP):
IP20
Netfrequentie:
50/60 Hz
Aantal fasen ingang:
3
Aantal fasen uitgang:
3
Inzet in woon- en kantorenomgeving toegestaan:
ja
Hoogte:
180 mm
Breedte:
100 mm
Diepte:
136 mm
PowerFlex 40 AC Drive, 480VAC, 3PH, 12 Amps, 5.5 kW, 7.5 HP,Frame Size C, IP20 (Heatsinkless), LED Display, Digital Keypad, No CE Compliant Filter, RS485
- PowerFlex 40 AC Drives provide OEMs, machine builders, and end users with performance-enhancing motor control in an easy-to-use compact package.
- These drives feature sensor less vector control to meet low-speed torque demands.
- With flexible enclosure options, and simple programming, they can be installed and configured quickly.
- IP20 NEMA/UL Type Open, plate drive, flange mount, IP66 NEMA/UL Type 4X/12, and DIN rail
- Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives
- Zero Stacking™ Drives for ambient temperatures up to 40 °C (104°F)
- V/Hz and sensor less vector control, as well as process PID
- Integral RS-485 communication
- Drive overload protection, ramp regulation, and flying start
- Configuration and programming via integral LCD keypad, remote keypad, or software.
