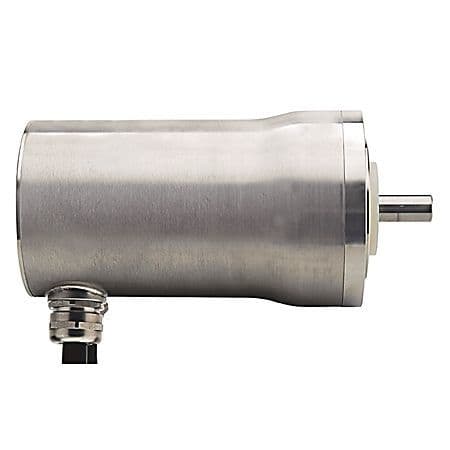

Allen-Bradley - MP SERIES MPS 480V ROTARY SERVO MOTOR - MPS-B310P-M-X183

€ 4.309,55

door St.

€ 4.309,55

Levering

Belangrijke informatie

EAN

00884951059955

Ref Routeco

MPS-B310P-M-X183

Ref leverancier

MPS-B310P-M-X183

Ref commercieel

MPS-B310P-M-X183

Uitvoering:

Draaistroom synchroonmotor

Nom. (meet)spanning:

460 V

Aantal fasen:

Meettoerental bij meetfrequentie:

5000 1/min

Nom. (meet)frequentie:

0...400 Hz

Spanningstype:

Beschermingsgraad (IP):

IP66

Belastingscyclus:

Framegrootte volgens IEC:

100 mm

Bedrijfstemperatuur:

0...40 °C

Provides high-performance motors for wash-down environments Offers peak torque of 11.1…27.1 Nm (98…240 lb-in.) Integrates with our Kinetix 6000, Ultra3000 and Ultra5000 servo drives Tightly sealed for maximum protection and corrosion resistance Offers hardened shaft wear sleeve for long-lasting shaft seal and shaft Meets requirements for IP66, IP67 and IP69K for 1200 psi wash-down Provides high-resolution feedback for smooth operation, with an absolute feedback option Offers 230V and 460V supply and integral 24V brake option
