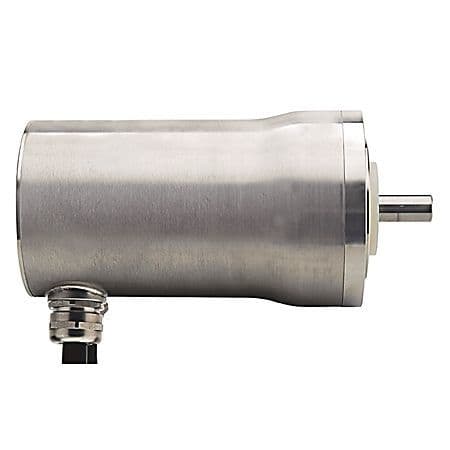

Allen-Bradley - MP-Series MPS 480V AC Rotary Servo Motor - MPS-B330P-MJ54DA
door St.
€ 4.702,49
Levering
Belangrijke informatie
Uitvoering - Draaistroom synchroonmotor
Nom. (meet)spanning - 460 V
Aantal fasen - 3
Meetvermogen bij meetfrequentie - 1.3 kW
Meettoerental bij meetfrequentie - 5000 1/min
Verpakking
1 St.
EAN
00820919497346
Ref Routeco
MPS-B330P-MJ54DA
Ref leverancier
MPS-B330P-MJ54DA
Ref commercieel
MPS-B330P-MJ54DA
Uitvoering:
Draaistroom synchroonmotor
Nom. (meet)spanning:
460 V
Aantal fasen:
3
Meetvermogen bij meetfrequentie:
1.3 kW
Meettoerental bij meetfrequentie:
5000 1/min
Nom. (meet)frequentie:
0...400 Hz
Spanningstype:
AC
Beschermingsgraad (IP):
IP66
Belastingscyclus:
S1
Framegrootte volgens IEC:
100 mm
Nom. draaimoment:
3.6 Nm
Bedrijfstemperatuur:
0...40 °C
Servo Motor,Rotary,Low Inertia,IEC,480V AC,1024 Sin/Cos,5000 rpm Maximum,4.18 N-M,3 m Circular DIN Connector Cable,HiperfaceMulti-Turn Absolute Encoder Feedback,24V DC Brake,100 mm Bolt Circle Tapped Metric Flange Mounting,Stainless Steel Housing,KeyedShaft,Standard
- Provides high-performance motors for wash-down environments
- Offers peak torque of 11.1…27.1 Nm (98…240 lb-in.)
- Integrates with our Kinetix 6000, Ultra3000 and Ultra5000 servo drives
- Tightly sealed for maximum protection and corrosion resistance
- Offers hardened shaft wear sleeve for long-lasting shaft seal and shaft
- Meets requirements for IP66, IP67 and IP69K for 1200 psi wash-down
- Provides high-resolution feedback for smooth operation, with an absolute feedback option
- Offers 230V and 460V supply and integral 24V brake option
