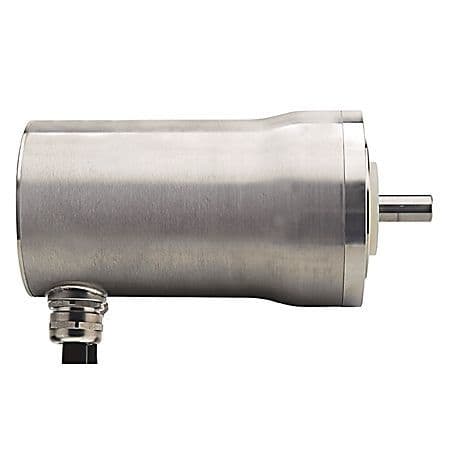

Allen-Bradley - MOTOR,SERVO,STNLSST,8.1NM,3000RPM - MPS-A4540F-MJ52DA
door St.
€ 5.021,51
Levering
Belangrijke informatie
Uitvoering - Draaistroom synchroonmotor
Nom. (meet)spanning - 230 V
Aantal fasen - 3
Meetvermogen bij meetfrequentie - 1.4 kW
Meettoerental bij meetfrequentie - 3000 1/min
Verpakking
1 St.
EAN
00820919538056
Ref Routeco
MPS-A4540F-MJ52DA
Ref leverancier
MPS-A4540F-MJ52DA
Ref commercieel
MPS-A4540F-MJ52DA
Uitvoering:
Draaistroom synchroonmotor
Nom. (meet)spanning:
230 V
Aantal fasen:
3
Meetvermogen bij meetfrequentie:
1.4 kW
Meettoerental bij meetfrequentie:
3000 1/min
Nom. (meet)frequentie:
0...400 Hz
Spanningstype:
AC
Beschermingsgraad (IP):
IP66
Belastingscyclus:
S1
Framegrootte volgens IEC:
130 mm
Nom. draaimoment:
8.1 Nm
Bedrijfstemperatuur:
0...40 °C
Bulletin MPS - Stainless Steel Servo Motors Product, 230 V, Frame Size 45 = 130 mm (5.12 in.), Stack Length 40 = 101.6 mm (4.0 in.), 3000 RPM, Multi-turn High-resolution Encoder (absolute feedback). Keyed Shaft Extension, Circular DIN Connector on 3 Meter Cable, No Brake, IEC Metric, Tapped Mounting Holes (Type FT)
- Provides high-performance motors for wash-down environments
- Offers peak torque of 11.1…27.1 Nm (98…240 lb-in.)
- Integrates with our Kinetix 6000, Ultra3000 and Ultra5000 servo drives
- Tightly sealed for maximum protection and corrosion resistance
- Offers hardened shaft wear sleeve for long-lasting shaft seal and shaft
- Meets requirements for IP66, IP67 and IP69K for 1200 psi wash-down
- Provides high-resolution feedback for smooth operation, with an absolute feedback option
- Offers 230V and 460V supply and integral 24V brake option
