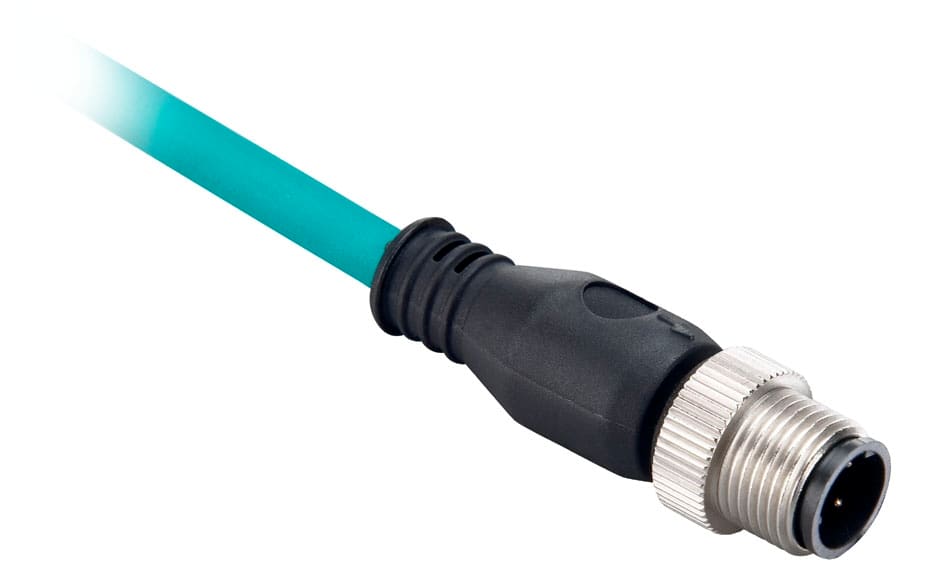

Allen-Bradley - MICRO D-CODE, QD STYLE ETHERNET MEDIA - 1585D-M4UB-25
door St.
€ 168,94
Levering
Belangrijke informatie
Categorie - 5E
Lengte - 25 m
Connectortype uiteinde 1 - M12
Connectortype uiteinde 2 - Overig
Materiaal connectorbehuizing aansluiting 2 - Kunststof
Verpakking
1 St.
EAN
00887172546648
Ref Routeco
1585D-M4UB-25
Ref leverancier
1585D-M4UB-25
Ref commercieel
1585D-M4UB-25
Categorie:
5E
Lengte:
25 m
Connectortype uiteinde 1:
M12
Connectortype uiteinde 2:
Overig
Materiaal connectorbehuizing aansluiting 2:
Kunststof
Mantelkleur:
Overig
Knikbeschermingstule:
Gespoten
Kleur knikbeschermingstule:
Zwart
Oliebestendig volgens IEC 60811-404:
ja
AWG-maat:
24
Pinconfiguratie:
1:1
Beschermingsgraad (IP):
IP67
1585 Ethernet Cables, 4 Conductors, M12, Straight Male, Standard, Flying Leads, Teal PUR, Shielded, 100BASE-TX, 100 Mbit/s, High Flex, PUR, Halogen Free, 10 million cycles
- Over molded housing suitable for IP67 applications and harsh industrial environments where extreme vibration, shock, chemicals, and temperature are found.
- Flex-rated cable (must be tied down and not flexed within 6 in. of the connector).
- Custom termination of single-ended cordsets with one of several field attachable connectors.
- Designed to ODVA EtherNet/IP specifications and ISO IEC 24702, IEC 61918.
- Twisted pairs maintain signal balance through cable to provide high noise immunity and return loss.
- Suitable for noise environments M3I3C3E3.
