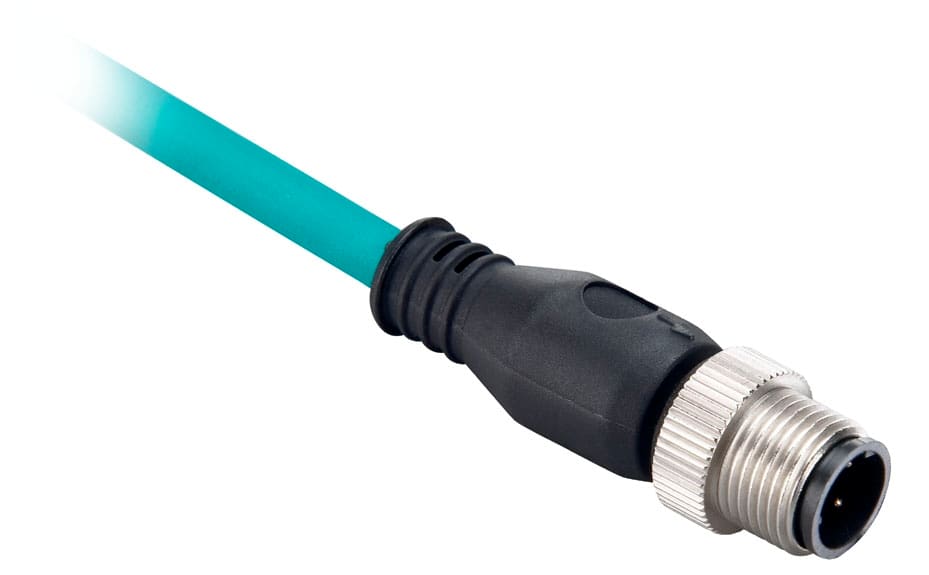

Allen-Bradley - Micro D-Code, QD Style Ethernet media - 1585D-M4GBJM-2
€ 46,50
door St.
€ 46,50
1
Levering
Aantal beschikbare items voor levering:0
Belangrijke informatie
Categorie - 5E
Lengte - 2 m
Connectortype uiteinde 1 - M12
Connectortype uiteinde 2 - RJ45 8(8)
Materiaal connectorbehuizing aansluiting 2 - Kunststof
Verpakking
1 St.
EAN
10885630158294
Ref Routeco
1585D-M4GBJM-2
Ref leverancier
1585D-M4GBJM-2
Ref commercieel
1585D-M4GBJM-2
Categorie:
5E
Lengte:
2 m
Connectortype uiteinde 1:
M12
Connectortype uiteinde 2:
RJ45 8(8)
Materiaal connectorbehuizing aansluiting 2:
Kunststof
Mantelkleur:
Grijs
Knikbeschermingstule:
Gespoten
Kleur knikbeschermingstule:
Zwart
Oliebestendig volgens IEC 60811-404:
ja
AWG-maat:
24
Pinconfiguratie:
1:1
Beschermingsgraad (IP):
IP67
EtherNet cable 4-conductors, M12 straight male to RJ45 straight male. flex TPE jacket material, 100BASE-TX, 100 Mbit/s.
- Over molded housing suitable for IP67 applications and harsh industrial environments where extreme vibration, shock, chemicals, and temperature are found.
- Flex-rated cable (must be tied down and not flexed within 6 in. of the connector).
- Custom termination of single-ended cordsets with one of several field attachable connectors.
- Designed to ODVA EtherNet/IP specifications and ISO IEC 24702, IEC 61918.
- Twisted pairs maintain signal balance through cable to provide high noise immunity and return loss.
- Suitable for noise environments M3I3C3E3.
