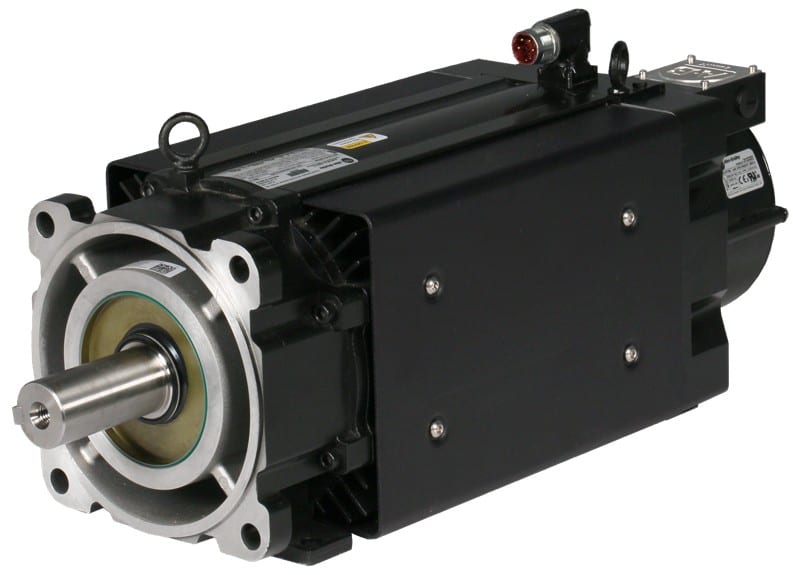

Allen-Bradley - Cont.Duty Servo Motor 400VAC 3000RPM - VPC-B1654D-SJ72FS
door St.
€ 4.043,42
Levering
Belangrijke informatie
Uitvoering - Draaistroom synchroonmotor
Nom. (meet)spanning - 400 V
Aantal fasen - 3
Meetvermogen bij meetfrequentie - 11 kW
Meettoerental bij meetfrequentie - 3000 1/min
Verpakking
1 St.
EAN
00889508399522
Ref Routeco
VPC-B1654D-SJ72FS
Ref leverancier
VPC-B1654D-SJ72FS
Ref commercieel
VPC-B1654D-SJ72FS
Uitvoering:
Draaistroom synchroonmotor
Nom. (meet)spanning:
400 V
Aantal fasen:
3
Meetvermogen bij meetfrequentie:
11 kW
Meettoerental bij meetfrequentie:
3000 1/min
Nom. (meet)frequentie:
0...400 Hz
Spanningstype:
AC
Beschermingsgraad (IP):
IP67
Belastingscyclus:
S1
Framegrootte volgens IEC:
165 mm
Nom. draaimoment:
35.1 Nm
Bedrijfstemperatuur:
0...40 °C
VPC Continuous Duty Servo Motor, 400V AC, 165mm Bolt Circle Frame Size, 4 (Four) Magnet Stacks, D Winding, 3000 RPM Rated Speed, 21 bit Single-turn, 1024 sin/cos, absolute encoder (Hiperface), Keyed Shaft, Dual SpeedTec Right Angle DIN Connector, 180° rotatable, No Holding Brake, Forced ventilation, Shaft Seal Standard (IP65)
- Provides real-time motor performance information to the control system via digital feedback device.
- Optimized to match drive ratings for efficient system sizing.
- Uses a single cable for feedback, motor brake, and motor power. Available in 3 frame sizes: 165, 215, 300 mm.
- Offers torque rating of 17.6…191.1 Nm.
- Offers power rating of 4.0…30.0 kW.
- Features cooling fan, shaft seal, upsized bearings, and foot mount.
- Uses Interior Permanent Magnet technology.
