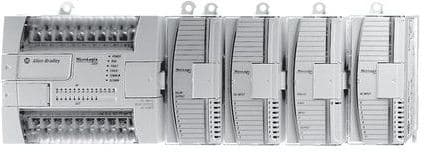

Allen-Bradley - Conformal Coated 1762-L24BXB - 1762-L24BXB-CC

1762 MicroLogix 1200 System, MicroLogix 1200, 24V dc power, (10) standard 24V dc and (4) fast 24V dc digital inputs, (5) relay outputs, (4) standard 24V dc FET outputs, (1) fast 24V dc FET output - conformally coated

• •Contains isolated RS-232/RS-485 combo port for serial and networked communication

• •Provides four latching or pulse-catch inputs and four interrupt inputs

• •Includes built-in independent 20 kHz high-speed counter

• •Offers Programmable Limit Switch function

• •Includes two built-in ¾-turn trim potentiometers with a digital output range of 0...250

• •Provides program data security

• •Supports floating point data files

• •Expands up to 136 I/O points

• •Compatible with 1762 MicroLogix Expansion I/O modules (up to six modules per controller)

• •Provides additional programming/HMI port for connectivity to a DF1 full-duplex compatible device (only on MicroLogix™ 1200R controllers)
