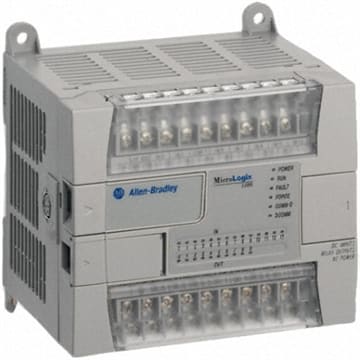

Allen-Bradley - Conformal Coated 1762-L24AWAR - 1762-L24AWAR-CC

1762 MicroLogix 1200 System, MicroLogix 1200, 120/240V ac power, (14) 120V ac digital inputs, (10) relay outputs, with Programming/HMI Port - conformally coated

• •Contains isolated RS-232/RS-485 combo port for serial and networked communication

• •Provides four latching or pulse-catch inputs and four interrupt inputs

• •Includes built-in independent 20 kHz high-speed counter

• •Offers Programmable Limit Switch function

• •Includes two built-in ¾-turn trim potentiometers with a digital output range of 0...250

• •Provides program data security

• •Supports floating point data files

• •Expands up to 136 I/O points

• •Compatible with 1762 MicroLogix Expansion I/O modules (up to six modules per controller)

• •Provides additional programming/HMI port for connectivity to a DF1 full-duplex compatible device (only on MicroLogix™ 1200R controllers)
